I have an old LED head floods for my trees with only 2 wires. Will this work? What are all the other leads for?

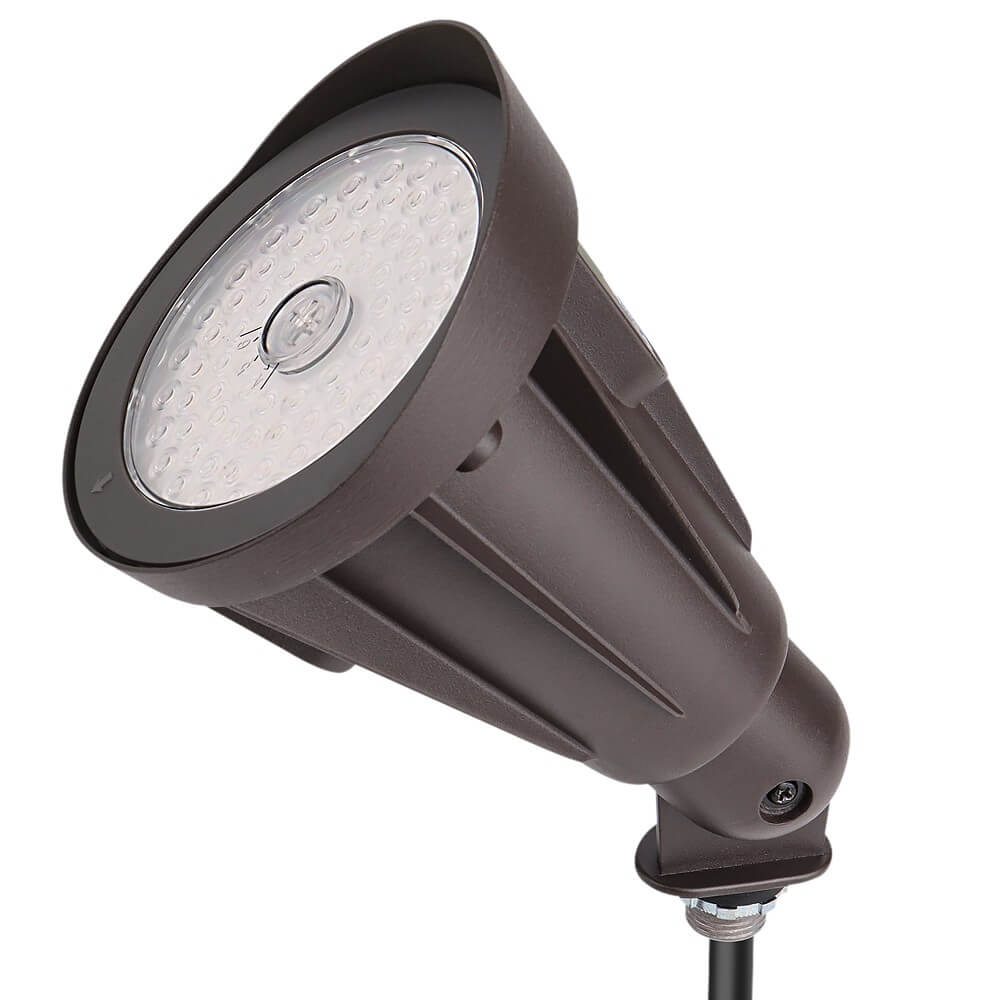

LED Outdoor Flood Light - 25W/20W/15W - 3,500 lumens - 3 CCT - Integrated photocell - 120-277V - 100W Equal
Hi,
Q: I have some 13 year old LED head floods for my cypress trees. Someone vandalized them. I don't know the brand or specs, but I'm assuming led fllods are somewhat interchangeable. My original lights only have 2 wires. What are all those leads for? The image of all those wires is spooking my handyman. Forgive our ignorance, but we couldn't locate a wiring diagram.
Regards,
Dave V.
Status:
Open Jul 06, 2026 - 08:01 PM
1answer
Staff Answer
Jul 07, 2026 - 06:47 AM
You will only need to connect the standard wires: Black (live), White (neutral), and Green (ground). There are 2 additional wires for 0-10V dimming control (purple and pink), which are optional and do not need to be connected if not using a dimmer.
